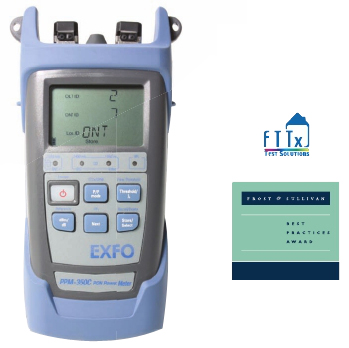

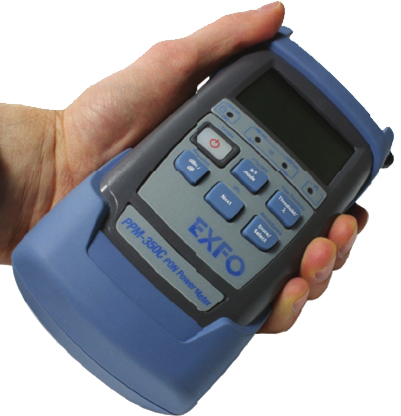

PPM-350C PON Power Meter

KEY FEATURES
Concurrent measurement of all PON signals*
anywhere on the network
Innovative workflow management
for boosted test routine efficiency
Enhanced rugged and weatherproof design
Protected data format for guaranteed
test result authenticity
COMPLEMENTARY PRODUCTS

AXS-100
Access OTDR
THE FRONTRUNNER NOW RUNS EVEN FASTER
When FTTH was first deployed, EXFO was there to test it, namely by pioneering the concurrent upstream/downstream measurement
technique via a pass-through connection. In fact, the EXFO-pioneered PPM-350 series, which quickly established itself as the
clear-cut leader in the PON power meter market—over 35000 units sold—has played an important part in major FTTH deployments
worldwide.
Since then, we have developed our instrument even more to provide you with the best PON power meter to date.
The PPM-350C enables quick, on-site testing of all PON signals, anywhere on the network. Its new workflow management
capabilities and enhanced ruggedness will increase the efficiency of your daily deployment activities.
Moreover, its visual fault locator port allows for easy fiber identification and macrobend location. This handheld unit also features
pass/warning/fail LED indicators with user-defined thresholds.

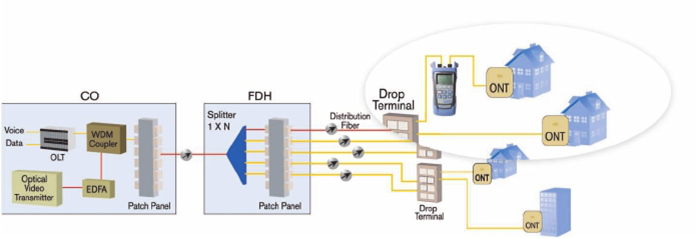

Figure 1. Typical use of a pass-through filter in a PON network.



RELIABLE PERFORMANCE, WHETHER THE ELEMENTS AGREE OR NOT
Thanks to its enhanced weatherproof design and intuitive user interface, and building on the strength of its predecessor
(PPM-350B), the PPM-350C PON Power Meter establishes a new FTTx testing benchmark. It delivers fast, reliable results,
even when used in cold, wet or windy conditions.

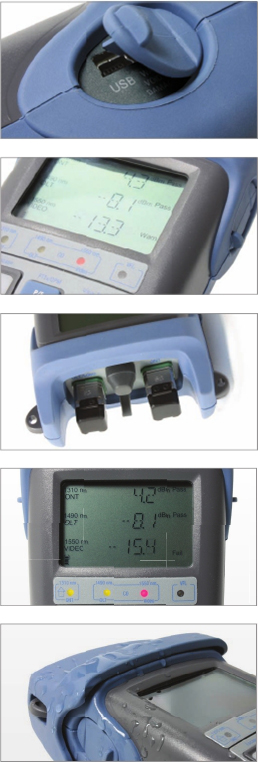

Easy-to-Access Data Storage
The unit’s data storage capabilities provide ultimate flexibility. Transfer
your data quickly and easily, store your test results for future reference
and generate a wide range of FTTH reports. Moreover, the PPM-350C
allows you to store up to 1000 test results, which are downloadable
through its USB interface.
Simultaneous Display of All PON Signals
The PPM-350C acts as a pass-through device, allowing the concurrent
measurement and simultaneous display of all PON signals—voice,
data and video. This patented, built-in technology facilitates service-
activation testing and troubleshooting.
Quick and Efficient Visual Inspection
Whether to identify breaks, bends, faulty connectors or splices, as well
as other causes of signal loss, the PPM-350C’s optional visual fault
locator (VFL) enables quick and easy troubleshooting. This valuable
option helps you shorten time-to-restoration cycles and increase the
productivity of your field crews.
Automated Pass/Warning/Fail Assessment
In addition to user-defined thresholds, EXFO’s PON power meter
offers pass/warning/fail LED indicators that allow you to clearly and
quickly assess your network’s power level. This user-friendly feature
facilitates QoS verification.

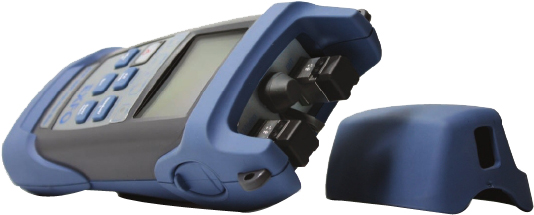

Rugged and Weatherproof Design
Truly rugged and weatherproof, the PPM-350C is the ideal tool for
technicians working outdoors. Its enhanced design also features a
waterproof keyboard, port cover flaps and a protective cap.
UNIQUE WORKFLOW MANAGEMENT FOR FASTER DEPLOYMENTS
Ensure the Authenticity of Each Measurement
Eliminate guesswork with EXFO’s comprehensive and easy-to-use data-storage
interface designed with PON testing in mind. Test results can be stored and flagged
per OLT, per ONT and even, per location. Then, they are stored in a protected data
format, ensuring the authenticity of each measurement.

Customize Location Names, Inside and Outside
The computer interface allows easy customization of OLT, ONT and location names.
Start testing right away; don’t waste time naming files. This time-saving feature
eliminates the risk of mistakes. Each file is named correctly so you don’t have to worry
about having to rename each file when you are back at the office.


ELIMINATE WRONG DATA NAMING AND SPEED UP TEST ROUTINES
The PPM-350C features a Job Editor mode, which allows you to pre-configure upcoming jobs in the unit’s memory. Once on
location, you simply have to select the job ID, the ONT number and the location ID for quick data storage—making the need to
carry your work schedule in the field a thing of the past. This is the best way to link results with customers/activations, also called
jobs. It’s as easy as 1-2-3:

Plus, even when the Job Editor mode is not configured, you can still store your results using generic names, for quick and
efficient testing.

SPECIFICATIONS a
