DVP- 730 Single Fiber Fusion Splicer

Features
Color LCD monitor & 256 magnification
Compact & Light weight
Reversible monitor with control panel on each side
Max. wind velocity of 15m/s.
8 Sec. splice time, 40 Sec. tube-heat time
Simultaneous X and Y views
Large capacity internal battery
SYSTEM TEST ensures the best working condition
User programmable
Auto check fiber end face
Auto calibrate parameters
Store 8000 groups of splice results
Multiple language options

Specifications

Applicable fibers    SM、MM、DS、NZ-DS、EDF Cladding diameter     100 to 150um Coating diameter     100 to 1000um Fiber cleaved length     16mm (standard) Splicing mode     Auto & Manual Average splice loss     0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS) Return loss     ≥ 60dB Environment conditions     -25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～4000m (altitude) Storage environment     -40～ +80℃ (temperature) , 0～95％RH (humidity) Protection sleeve length     20mm 、40mm 、60mm Tension test     2.0N (Standard) Language     English, Chinese, Korean, Russian, Spanish etc. Interface     RS232 interface & video output Power supply AC adaptor： 85～260V input voltage Internal battery：12V voltage, 10Ah, up to 150 times of continuous splices and heats DC adaptor：12V voltage，optional multipurpose external battery Dimensions     170（W）×140（H）×170（D）mm Weight     3.3kg

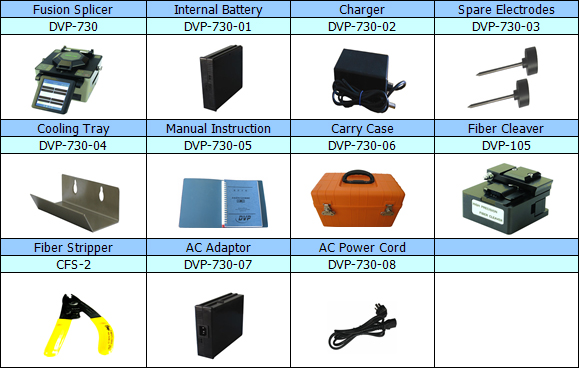

Standard package
