KEY FEATURES
Self-setting unit
Link-Aware technology
Optical Link View
Prompt diagnosis
Consolidated bidirectional link view (patent-pending)
OTDR trace file generation (.sor)
Cable testing (IL/ORL measurement)
PLATFORM COMPATIBILITY
GO BEYOND OTDR TESTING.
Innovation is front and center at EXFO, and the Intelligent Optical Link Mapper (iOLM) is a prime example of a game-changing
solution. The iOLM lets you take advantage of the full power of your OTDR, bringing automation to a new level¡ªand enabling even
the untrained technician to become a test expert in no time.
The iOLM integrates all our expertise into a simple, easy-to-use software that will take your OTDR testing capabilities further than
they¡¯ve ever been. And since EXFO designs and optimizes each OTDR model so that it offers the best possible performance for
its specific application, your solution will fit to your reality.

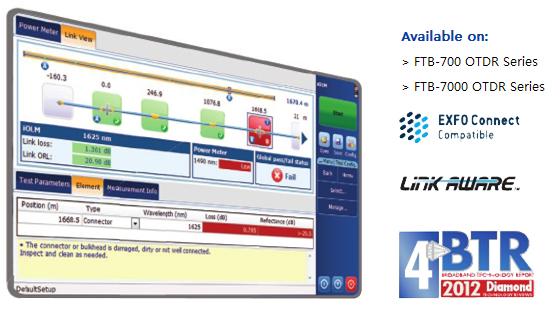

iOLM¡ªWHAT IS IT AND HOW DOES IT WORK?
The iOLM is an innovative OTDR-based application that uses multipulse acquisitions and advanced algorithms to deliver detailed
information on every element on the link.

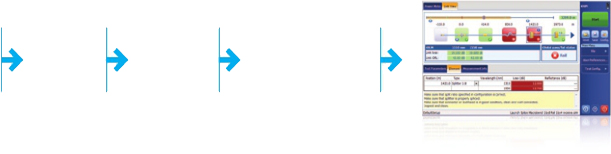

TYPICAL WORKFLOW
Launch
multiple OTDR
acquisitions

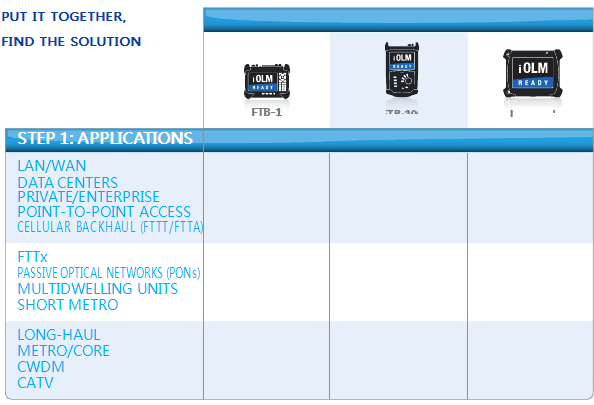

THREE EASY STEPS TO A PERFECT FIT
STEP 1: Choose your network application
True OTDR performance goes far beyond simple product specifications.
It¡¯s about optimizing your network services, based on application-specific parameters.
STEP 2: Choose your form factor

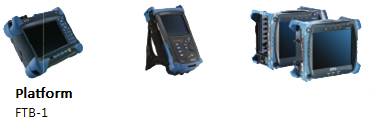

> FTB-1: Compact, dedicated handheld test set to perform single-minded tasks under tight budget constraints
> FTB-200: Modular handheld platform providing more rexibility for repetitive daily tasks
> FTB-500: Full-sized modular platform for advanced multi-application testing
* Note: iOLM compatibility for these modules on the FTB-500 platform will be available soon.

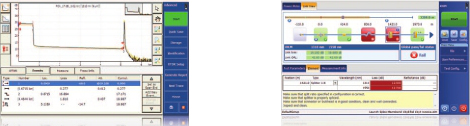

STEP 3: Choose your technology
Go traditional, go bleeding-edge, or combine the best of both worlds in a single unit:
> Time-proven OTDR technology with
advanced modes, trace analysis and editing
UNIQUE FEATURES
LINK-AWARETM TECHNOLOGY
Let it optimize the test run | With one click, the unit automatically performs link recognition, sets the
optimal parameters and launches multiple acquisitions and multiple analyses¡ªat multiple wavelengths¡ª
consolidating the results obtained for every link section and every network element. Get accurate information
right away on each link element and export it to a single report.
SELF-SETTING UNIT
Let it be the expert | Powered by Link-Aware technology, the iOLM self-manages the setting of all test
parameters¡ªready-to-use intelligence that dramatically shortens the learning curve. Minimize training, avoid
test misconfiguration, and facilitate your technicians¡¯ transition from copper to fiber.
OPTICAL LINK VIEW
GENERATION
Let it fit your existing test filing requirements | The iOLM can generate a universal and enhanced Bellcore
format (.sor) OTDR trace to comply with your existing reporting and post-processing requirements. This OTDR
trace integrates all the additional information gathered by the iOLM, providing more complete results.
CONSOLIDATED BIDIRECTIONAL LINK VIEW (PATENT-PENDING)
Let it combine the results | To ensure true splice characterization bidirectional testing is recommended.
The iOLM bidirectional link view just makes this task easier as it combines the results from multiple wavelengths
in multiple directions and presents it in a single, easy-to-read, iOLM-style format. Plus, you can easily generate
batch reports through FastReporter2 Data Post-Processing Software.
AUTOMATE ASSET MANAGEMENT. PUSH TEST DATA IN THE CLOUD. GET CONNECTED.
EXFO Connect pushes and stores test equipment and test data content automatically
in the cloud, allowing you to streamline test operations from build-out to maintenance.
ADDITIONAL FEATURES
Real-Time OTDR Mode
The iOLM supports real-time OTDR mode (RT option) functionality via the iOLM software application. Either run the OTDR
application (Oi option) or the RT mode (RT option) to measure field-splicing or to check the link before launching an iOLM
acquisition.
2xN Splitter Characterization
The iOLM is the only solution on the market to characterize 2xN splitter with a clear pass/fail verdict for multi-input or redundancy
networks. It identifies 2xN splitters as well as both their input branches allowing users to accurately document the network with
one test (compared to three tests when using traditional methods).
iOLM Expert Mode (iEX)
iEX is a software option specifically designed for the fiber test expert or the manager who requires more flexibility in documenting
the trace files for reporting purposes. Because flexibility also means that you can create your own elements to better match
your network plans, this option allows you to add extra events, delete events or re-analyze the trace.
RECOMMENDATIONS
Angled-Polished (APC) Connectors
Like any OTDR, the iOLM will be offerred by strong reflections at the unit¡¯s port. To ensure low reflections and maintain
measurement accuracy, the iOLM singlemode port must be used with APC connectors. Another advantage of using APC
connectors is their ability to handle harsher conditions without becoming highly reflective while maintaining the unit¡¯s performance.
In the case of UPC connectors, they are prone to be highly reflective if contaminated, worn or damaged. This will affect the
measurement and will lead to premature connector replacement. Although testing a UPC network does not require a UPC unit,
using an APC/UPC test jumper (included with the iOLM) or a launch fiber (SPSB) ensures compatibility.

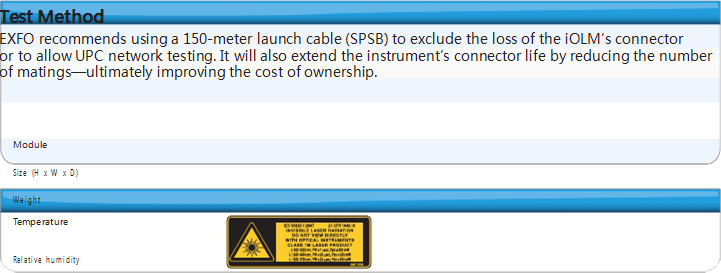

LASER SAFETY
21 CFR 1040.10 AND IEC 60825-1:2007
CLASS 1M
 |
