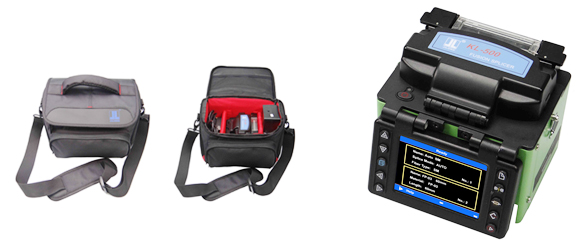

KL-500 FUSION SPLICER

Specifications

   Applicable fibers         SM  MM  DS  NZDS
   Fiber diameter    Cladding diameter:80-150¦Ìm;Coating diameter:100-1000¦Ìm
   Fiber aligning method      Meticulous¡¢Core¡¢Clad¡¢Manual
   Actual average splice loss    0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
   Typical splicing time       Typical 9 sec (standard SM fiber)
   Tube typical heating time    Typical 30 sec
   Storage of splice result    4000 results, 20 parameter per result
   Fiber image magnification    200X (X or Y view)£¬50X  (X and Y view)
   Battery capacity    Typical 300 cycles (splice/tube heat with inner Li-battery)
   Monitor    3.5 inch TFT color LCD monitor
   Power supply        AC 100-240V with AC adapter  inner Li-battery (5200mAH)
   Dimension     25mm(L)¡Á105mm(W)¡Á113mm(H)
   Fiber cleaved length    8-16mm (Coating diameter:250¦Ìm)
   Fiber count    Single
   Return loss    £¾60dB
   Splicing mode    Auto Calibrate Normal Special
   Splicing program    53 (templet), 40(user)
   Protection sleeve length    60mm, 40mm
   Tube heating program           9 (templet),24(user)
   Tension test    2N
   Electrode life         2500
   Terminal         USB
   Operating condition       0-5000m above sea level, -10-50¡ã
   Max wind velocity of 15m/s
   Weight        1.55Kg including battery

Function Comparision of Jilong Fusion Splicer

   Function KL-280G KL-280 KL-300T KL-500
   Display fiber cleaved angle     ¡ª ¡ª ¡ñ ¡ñ
   Display fiber offset angle       ¡ª ¡ª ¡ñ ¡ñ
   Display core offset                  ¡ª ¡ª ¡ñ ¡ñ
   Display clad offset       ¡ª ¡ª ¡ñ ¡ñ
   Splicing mode (Auto, Calibrate ,Normal ,Special) ¡ñ ¡ª ¡ñ ¡ñ
   Fiber aligning method (Core¡¢Clad¡¢Manual) ¡ñ ¡ª ¡ñ ¡ñ
   Arc strength automatic adjustment ¡ñ ¡ª ¡ñ ¡ñ
   Image turn over ¡ª ¡ñ ¡ñ ¡ñ
   Fiber angle limit ¡ª ¡ª ¡ñ ¡ñ
   Display inside temperature        ¡ª ¡ª ¡ñ ¡ñ
   Display ambient temperature    ¡ª ¡ª ¡ñ ¡ñ
   Display heater temperature       ¡ª ¡ª ¡ñ ¡ñ
   Display air pressure         ¡ª ¡ª ¡ñ ¡ñ
   Display battery voltage       ¡ª ¡ª ¡ñ ¡ñ
   Taper splice              ¡ª ¡ª ¡ñ ¡ñ
   Sleep                 ¡ª ¡ª ¡ñ ¡ñ
   Auto shut down            ¡ª ¡ª ¡ñ ¡ñ
   Software upgrade via USB interface ¡ñ ¡ª ¡ñ ¡ñ
